EPS Core
Optimized for Motor Core Production

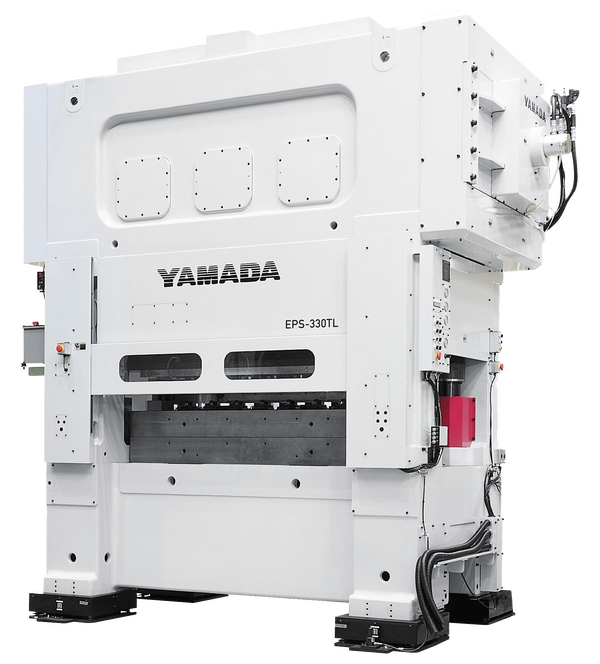

With the EPS Core Series, YAMADA sets a new benchmark for motor core lamination. Designed with 3 or 4 guided pressure columns and a robust slide, these presses deliver exceptional stability and precision even under high-speed, high-load conditions. Our ceramic-aluminium alloy slides reduce moving mass while maintaining extreme rigidity, ensuring unparalleled bottom-dead-center accuracy. Every detail is engineered to meet the strict tolerances required for advanced motor components, empowering manufacturers to achieve consistent quality and efficiency from the very first stroke.
- Fixed stroke crank motion
- Highly rigid frame to withstand any eccentric load
- Wide bolsters for large dies
- Up to four guided plungers
- High torque clutch & brake
Press Force
10
2200kN
3300kN
3500
Stroke Length
1
30mm
50mm
100
Bolster Length
100
2000mm
3300mm
3500
Bolster Width
1
1000mm
1200mm
2000
Maximum Speed
10
400spm
500spm
3500
/ Specifications
Technology That Powers
Precision and Performance
- Ceramic/Aluminium Alloy Slide
- Lightweight yet extremely hard material reduces moving mass for optimal stability around bottom-dead-center.
- Large Scale Precision
- Maintains exceptional accuracy across the full length of the press.
- Up to Four Guided Plungers
- Ensures optimal force distribution and stability across the slide.
- Reduced Vibrations
- Floating crankshaft bearings and balanced construction minimize vibration and noise.
- 24" Touchscreen Control
- Intuitive interface for precise, seamless operation.
- Integrated Press-Force Monitoring
- Monitors press force for consistent results and operator safety.
- Durable GGG-50 Press Body
- Robust construction for maximum structural stability under extreme operational speeds.
- Dynamically Balanced Eccentric Shaft
- Precision-machined to eliminate vibration at ultra-high speeds.
- Heat & Cool System
- Preheats machine to ensure perfect parts from the first stroke.
/ EPS-Core
All models in the
EPS Core series
View:
- Cards
- Table
Filter:
Press Force kN
Reset
Slide Width mm
Reset
Stroke Length (max.) mm
Reset
Press ForcekN
Stroke Length (min.)mm
Stroke Length (max.)mm
Stroke Type
Drive
Maximum Speedspm
Bolster Lengthmm
Bolster Widthmm
Slide Lengthmm
Slide Widthmm
Die Height (min.)mm
Die Height (max.)mm
Adjustment Rangemm
Strip Inlet Widthmm
Machine Heightmm
Weightt
/ Facilities
Heat & Cool System
Perfect Parts from the First Stroke
Precision starts at the very first stroke. Yamada’s Heat & Cool system keeps the press at a constant operating temperature — from the first part to the last. Before production begins, the system automatically heats the press frame and slide to the optimal temperature using a built-in timer, so the machine is ready when production starts — without any loss of time. Once running, a circulating oil loop maintains the temperature within ±1 °C through integrated heating and cooling.
The result: consistent part quality, stable accuracy, and less scrap — without any additional cost. The Heat & Cool system comes standard with every Yamada press, ensuring perfect performance right from the start.
- 24" Color Touchscreen Control
- YAMADA 24" touchscreen with 16 selectable languages, stores 1000 tool datasets (stroke height, stroke rate, tool installation height, feed parameters, tool designation, specific tool data).
- Heat & Cool System
- Automatic oil temperature regulation for consistent performance.
- Dynamic Slide Balancing
- Dynamically balanced slide for smooth, precise operation.
- Digital Angle & Stroke Rate Display
- Real-time monitoring of angle and stroke rate.
- Main Drive with Forward/Reverse
- Flexible operation with forward and reverse functionality.
- Digital Slide Height Display
- 0.001 mm accuracy with motorized adjustment and hydraulic clamping; includes Quick Stroke Lift (QSL) with auto-repositioning.
- YAMADA Active Control
- Automatic correction of slide penetration depth for precision.
- Dynamic Vibration Protection (D.V.P.)
- Vibration-damping machine feet for enhanced stability.
- Programmable Digital Outputs
- 10 programmable 24V outputs (cams) for customized control.
- Safety Inputs/Outputs
- Instant-stop and top-dead-center stop inputs, plus “clutch engaged” output for peripherals.
- YAMADA Press Force Monitoring
- Dual-channel system with piezo sensors on corner columns, displaying total and per-channel force, with tool protection via max/min force settings.
- Digital Counters & Meters
- 9-digit piece counter (up/down), ammeter, and operating hours counter.
- Digital Speed Display
- Real-time press speed monitoring.
- Oil & Air Pressure Monitoring
- Displays with automatic oversight for reliability.
- Two-Hand Operation Hardware
- Tactile buttons for two-hand operation (tip/micro-tip only with closed door), emergency stop, and top-dead-center stop.
- External Safety Signals
- 2 instant-stop and 2 top-dead-center stop inputs.
- Controlled Air Blow-Off
- Cam-operated blow-off with 4 cam outputs, plus constant air connection and blow-off gun.
- Lubrication Oil Channel
- Collection tray with 1.6L capacity for oil drainage.
- Safety Doors
- Front and rear safety doors for secure operation.
- Work Area Lighting
- Integrated illumination for enhanced visibility.
- Electrical Cabinet Cooling
- Cooling system for reliable electronics performance.
