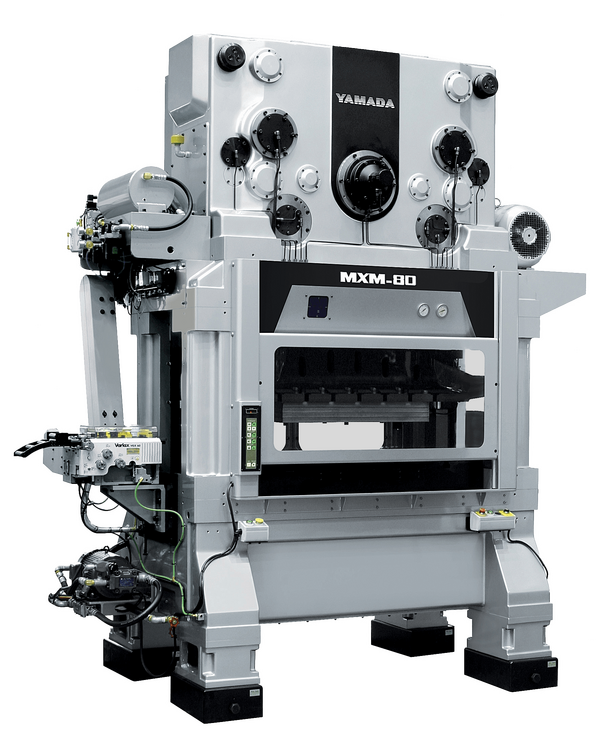

MXM Series
Fixed Stroke Link-Motion Press
for Superior Precision
The MXM Series utilizes YAMADA’s Link-Motion Drive with a fixed stroke for unmatched bottom-dead-center precision. With speeds up to 2,400 spm, it delivers fast, reliable stamping, featuring guided dual plungers, four-post guides, automatic temperature control, and dynamic crankshaft balancing for peak stability in every stroke.
- Link-Motion Drive
- Fixed Stroke
- Outstanding Bottom-Dead-Center Accuracy
- Speeds up to 2,400 spm
- Outstanding Value
Press Force
10
150kN
2200kN
3500
Stroke Length
1
10mm
60mm
100
Bolster Length
100
500mm
2000mm
3500
Bolster Width
1
400mm
1000mm
2000
Maximum Speed
10
400spm
2400spm
3500
/ Specifications
Technology That Powers
Precision and Performance
- Proven Reliability
- Ensures consistent, high-performance operation across a wide range of stamping applications.
- Link-Motion Drive
- Reduces slide speed by ~30% near bottom dead center for improved stability and accuracy.
- Extended Tool Life
- Optimized slide motion reduces wear, extending maintenance intervals.
- Reduced Vibrations
- Stable slide motion ensures consistent, high-quality results.
- 24" Touchscreen Control
- Intuitive interface for smooth and easy operation.
- Automatic Stroke Adjustment
- Automatically saves and adjusts stroke height and parameters for each tool.
- Quick Tool Change
- Stores up to 1000 tool parameters for fast and flexible setups.
- Integrated Press-Force Monitoring
- Monitors press force for reliability and operator safety.
- Durable GGG-50 Press Body
- Robust construction for maximum structural stability.
- Dynamically Balanced Eccentric Shaft
- Precision-machined for vibration-free operation.
- Guided Pressure Columns
- Six guides (2 pressure columns, 4 slide guides) for superior horizontal stability.
- Heat & Cool System
- Preheats the machine to ensure perfect parts from the first stroke.
/ MXM-Series
All models in the MXM series
View:
- Cards
- Table
Filter:
Press Force kN
Reset
Stroke Length (max.) mm
Reset
Slide Width mm
Reset
Press ForcekN
Stroke Length (min.)mm
Stroke Length (max.)mm
Stroke Type
Drive
Maximum Speedspm
Bolster Lengthmm
Bolster Widthmm
Slide Lengthmm
Slide Widthmm
Die Height (min.)mm
Die Height (max.)mm
Adjustment Rangemm
Strip Inlet Widthmm
Machine Heightmm
Weightt
/ Facilities
Link-Motion Drive
Precision Where It Counts
The Link-Motion Drive is YAMADA’s innovative solution for achieving optimal slide motion in stamping presses. Unlike a conventional crank-motion drive, which moves the slide at a nearly constant speed throughout the stroke, the Link-Motion Drive intelligently reduces the slide speed by around 30 % in the critical stamping zone near bottom dead center (BDC).
This deceleration around the point of material forming ensures:
-
Improved Process Stability: The slide moves more smoothly through the active area of the tool, minimizing vibrations and deviations.
-
Higher Accuracy: Consistent bottom-dead-center positioning guarantees uniform part quality, even at high stroke rates.
-
Extended Tool Life: Reduced speed in the critical forming zone decreases wear, meaning tools need resharpening less frequently.
-
Optimized Production Efficiency: The slide moves faster outside the stamping zone where precision is less critical, balancing speed and quality.
In short, the Link-Motion Drive delivers unmatched precision, process stability, and less wear on your tools.
/ Facilities
Heat & Cool System
Perfect Parts from the First Stroke
Precision starts at the very first stroke. Yamada’s Heat & Cool system keeps the press at a constant operating temperature — from the first part to the last. Before production begins, the system automatically heats the press frame and slide to the optimal temperature using a built-in timer, so the machine is ready when production starts — without any loss of time. Once running, a circulating oil loop maintains the temperature within ±1 °C through integrated heating and cooling.
The result: consistent part quality, stable accuracy, and less scrap — without any additional cost. The Heat & Cool system comes standard with every Yamada press, ensuring perfect performance right from the start.
- 24" Color Touchscreen Control
- YAMADA 24" touchscreen with 16 selectable languages, stores 1000 tool datasets (stroke height, stroke rate, tool installation height, feed parameters, tool designation, specific tool data).
- Heat & Cool System
- Automatic oil temperature regulation for consistent performance.
- Dynamic Slide Balancing
- Dynamically balanced slide for smooth, precise operation.
- Digital Angle & Stroke Rate Display
- Real-time monitoring of angle and stroke rate.
- Main Drive with Forward/Reverse
- Flexible operation with forward and reverse functionality.
- Digital Slide Height Display
- 0.001 mm accuracy with motorized adjustment and hydraulic clamping; includes Quick Stroke Lift (QSL) with auto-repositioning.
- YAMADA Active Control
- Automatic correction of slide penetration depth for precision.
- Dynamic Vibration Protection (D.V.P.)
- Vibration-damping machine feet for enhanced stability.
- Programmable Digital Outputs
- 10 programmable 24V outputs (cams) for customized control.
- Safety Inputs/Outputs
- Instant-stop and top-dead-center stop inputs, plus “clutch engaged” output for peripherals.
- YAMADA Press Force Monitoring
- Dual-channel system with piezo sensors on corner columns, displaying total and per-channel force, with tool protection via max/min force settings.
- Digital Counters & Meters
- 9-digit piece counter (up/down), ammeter, and operating hours counter.
- Digital Speed Display
- Real-time press speed monitoring.
- Oil & Air Pressure Monitoring
- Displays with automatic oversight for reliability.
- Two-Hand Operation Hardware
- Tactile buttons for two-hand operation (tip/micro-tip only with closed door), emergency stop, and top-dead-center stop.
- External Safety Signals
- 2 instant-stop and 2 top-dead-center stop inputs.
- Controlled Air Blow-Off
- Cam-operated blow-off with 4 cam outputs, plus constant air connection and blow-off gun.
- Lubrication Oil Channel
- Collection tray with 1.6L capacity for oil drainage.
- Safety Doors
- Front and rear safety doors for secure operation.
- Work Area Lighting
- Integrated illumination for enhanced visibility.
- Electrical Cabinet Cooling
- Cooling system for reliable electronics performance.
